solar radiation sensor

solar radiation sensor

Product Details:

X

Product Description

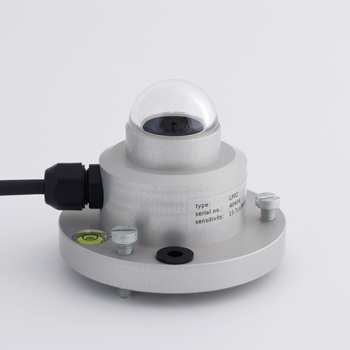

The SEN-SR-SW is a self-powered sensor with a millivolt output and exhibits excellent cosine response. It incorporates a silicon-cell photodiode that measures total shortwave radiation with a sensor housing design that features a fully potted, domed-shaped head making the sensor fully weatherproof and self-cleaning. Total shortwave radiation is an important component in determining evapotranspiration rates, energy balance & net radiation as well as monitoring solar power panels.

Specifications


For Shortwave Radiation

Type : Silicon-cell
Spectral Range : 300 - 1100 nm

Radiation Range : 0 – 2000 w/m2
Cosine response : @ 45° zenith angle: ± 4 %

Cosine response : @ 75°zenith angle: ± 10 %
Absolute accuracy : ± 5 %

Repeatability : ± 1 %
Output : 0.200 mV / Wm-2

Sensitivity : Custom calibrated to exactly 5.00 W m- 2/mV

Operating environment : -40 to 55 °C; 0 to 100% RH

Field of View : 180°
Power Supply : Self-powered
